标准 STD
设计与制造
Design and Manufacture |
结构长度
Face To Face |
法兰尺寸
Flange Dimension |
压力-温度
Pressure Temperature Lating |
试验-检验
Inspection and Test |
| JIS B2071 B2081 |
JIS B2002 |
JIS B2212 B2214 |
JIS B2071 B2081 |
JIS B2003 |
性能规范 Capability Criterion
阀体材料
Body material |
SCPH2-11 |
SCPH-32 |
SCS13A |
SCS19A |
SCS14A |
SCS16A |
SCPL1 |
工作温度
Suitable Temperature |
≤425℃ |
≤540℃ |
≤275℃ |
≤200℃ |
≤275℃ |
≤200℃ |
-45～150℃ |
| 适用介质Appropriate Medium |
水 蒸汽 油品
Water Steam Oil Goods |
硝酸类
Nitric Acid |
醋酸类
Acetic Acid |
氨气 液氨
Liquid Ammonia |

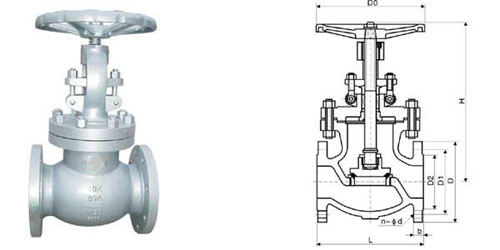

10K级 规格 主要尺寸和重量 Size Main Dimensions and Weight J41H (Y W)
| DN mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
W(kg) |
| 50 |
2 |
203 |
155 |
120 |
100 |
16 |
4-19 |
360 |
200 |
22 |
| 65 |
21/2 |
216 |
175 |
140 |
120 |
18 |
4-19 |
380 |
200 |
32 |
| 80 |
3 |
241 |
185 |
150 |
130 |
18 |
8-19 |
415 |
250 |
41 |
| 100 |
4 |
292 |
210 |
175 |
155 |
18 |
8-19 |
465 |
250 |
68 |
| 125 |
5 |
356 |
250 |
210 |
185 |
20 |
8-23 |
515 |
300 |
88 |
| 150 |
6 |
406 |
280 |
240 |
215 |
22 |
8-23 |
545 |
350 |
128 |
| 200 |
8 |
495 |
330 |
290 |
265 |
22 |
12-23 |
675 |
450 |
198 |
| 20K级 |
| 50 |
2 |
267 |
155 |
120 |
100 |
18 |
8-19 |
420 |
200 |
30 |
| 65 |
21/2 |
292 |
175 |
140 |
120 |
20 |
8-19 |
465 |
250 |
43 |
| 80 |
3 |
318 |
200 |
160 |
135 |
22 |
8-23 |
490 |
300 |
58 |
| 100 |
4 |
356 |
225 |
185 |
160 |
24 |
8-23 |
590 |
350 |
100 |
| 125 |
5 |
400 |
270 |
225 |
195 |
26 |
8-25 |
690 |
400 |
149 |
| 150 |
6 |
444 |
305 |
260 |
230 |
28 |
12-25 |
760 |
450 |
185 |
| 200 |
8 |
559 |
350 |
305 |
275 |
30 |
12-25 |
1070 |
450 |
305 |
|
