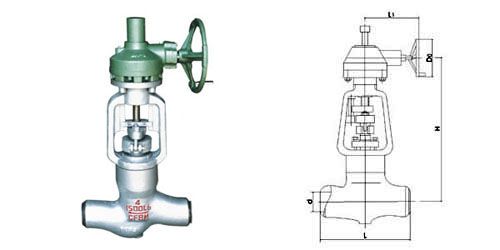

规格 主要尺寸和重量 Size Main Dimensions and Weight
| 规格DN Size |
主要尺寸 Main Dimensions（mm) |
齿轮装置型号Electric Actuator Code |
重量Weight |
| mm |
in |
d |
L |
H |
D0 |
L1 |
| 1500Lb |
| 125 |
5 |
100 |
580 |
995 |
460 |
332 |
BA-1 |
303 |
| 1170 |
610 |
417 |
BA-2 |
388 |
| 150 |
6 |
125 |
630 |
1360 |
460 |
332 |
BA-1 |
680 |
| 200 |
8 |
158 |
770 |
1500 |
610 |
417 |
BA-2 |
762 |
| 2000Lb |
| 100 |
4 |
80 |
570 |
1125 |
460 |
332 |
BA-1 |
286 |
| 1185 |
610 |
417 |
BA-2 |
425 |
| 125 |
5 |
96 |
660 |
1370 |
610 |
417 |
BA-2 |
460 |
| 1435 |
760 |
459 |
BA-3 |
525 |
| 150 |
6 |
118 |
760 |
1430 |
610 |
417 |
BA-2 |
560 |
| 1495 |
760 |
459 |
BA-3 |
625 |
| 2500Lb |
| 100 |
4 |
70 |
570 |
1125 |
460 |
332 |
BA-1 |
406 |
| 1185 |
610 |
417 |
BA-2 |
451 |
| 125 |
5 |
88 |
660 |
1370 |
610 |
417 |
BA-2 |
505 |
| 1435 |
760 |
459 |
BA-3 |
580 |
| 150 |
6 |
104 |
760 |
1430 |
610 |
417 |
BA-2 |
605 |
| 1495 |
760 |
459 |
BA-3 |
680 |
|
